Indoor Sports Lighting

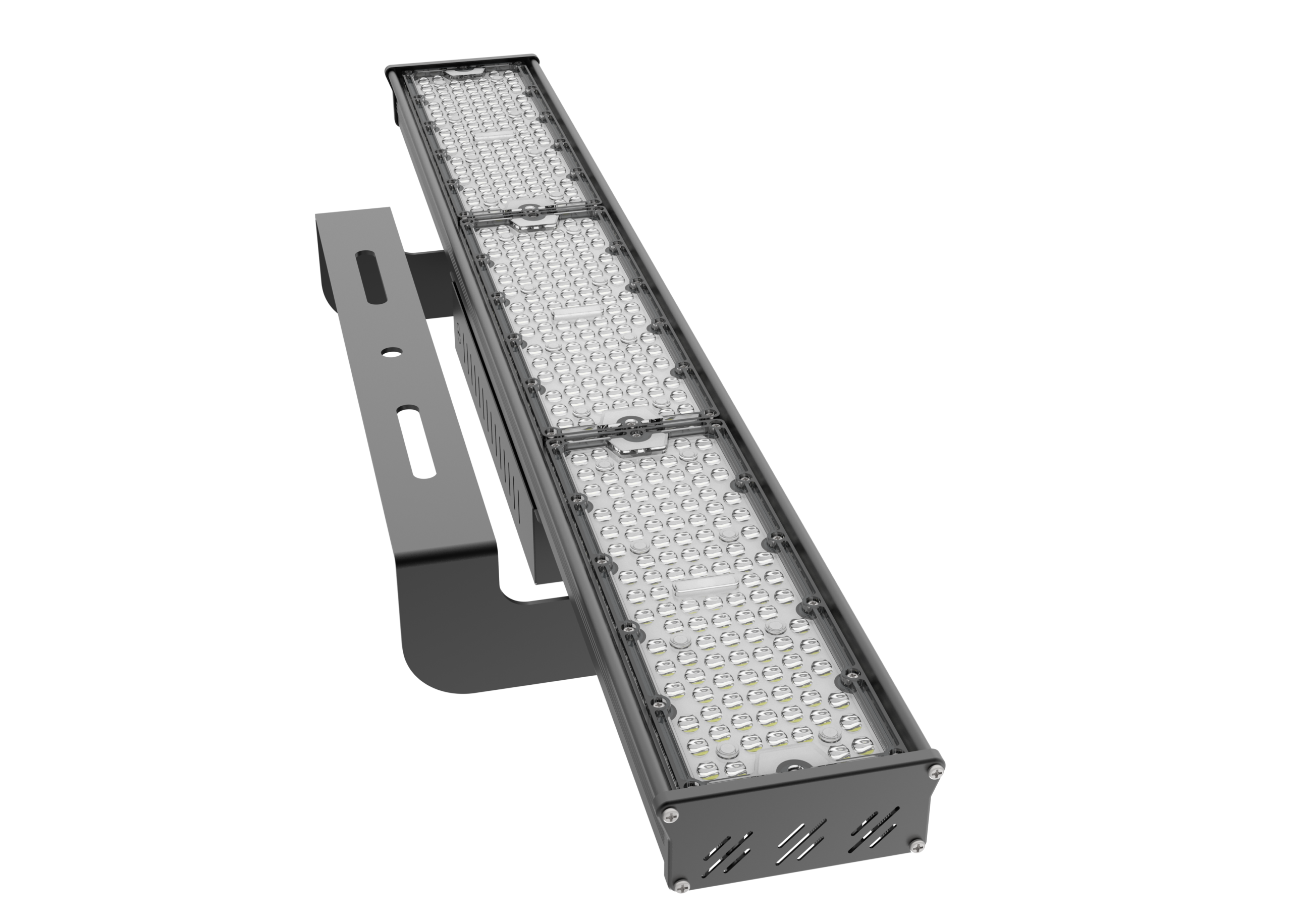

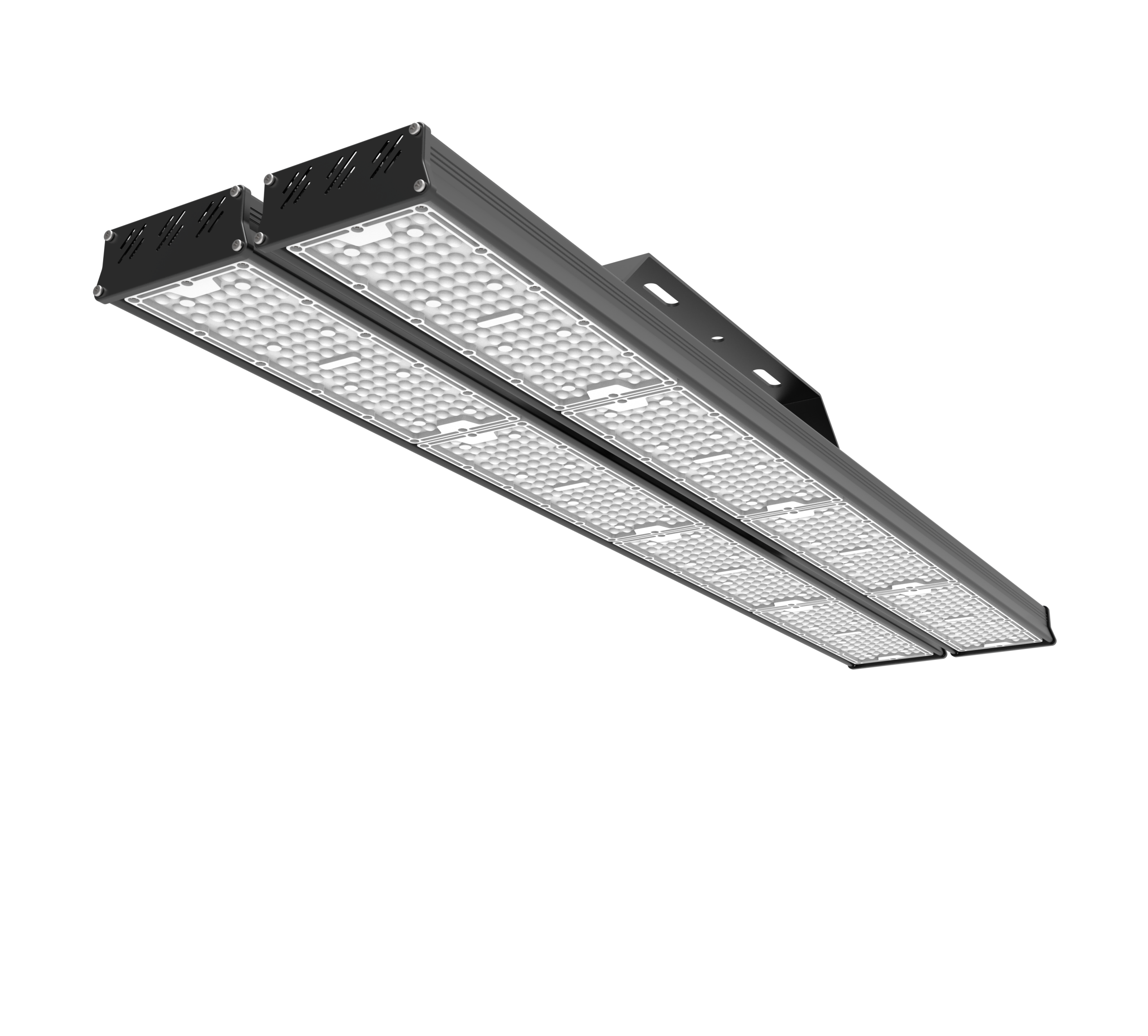

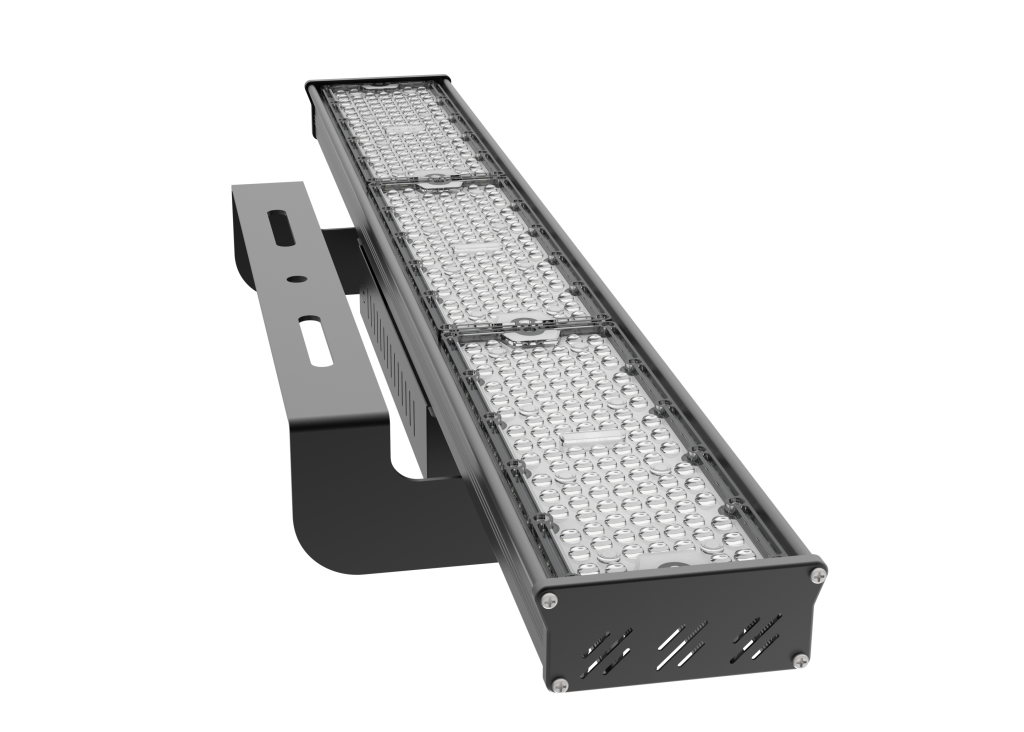

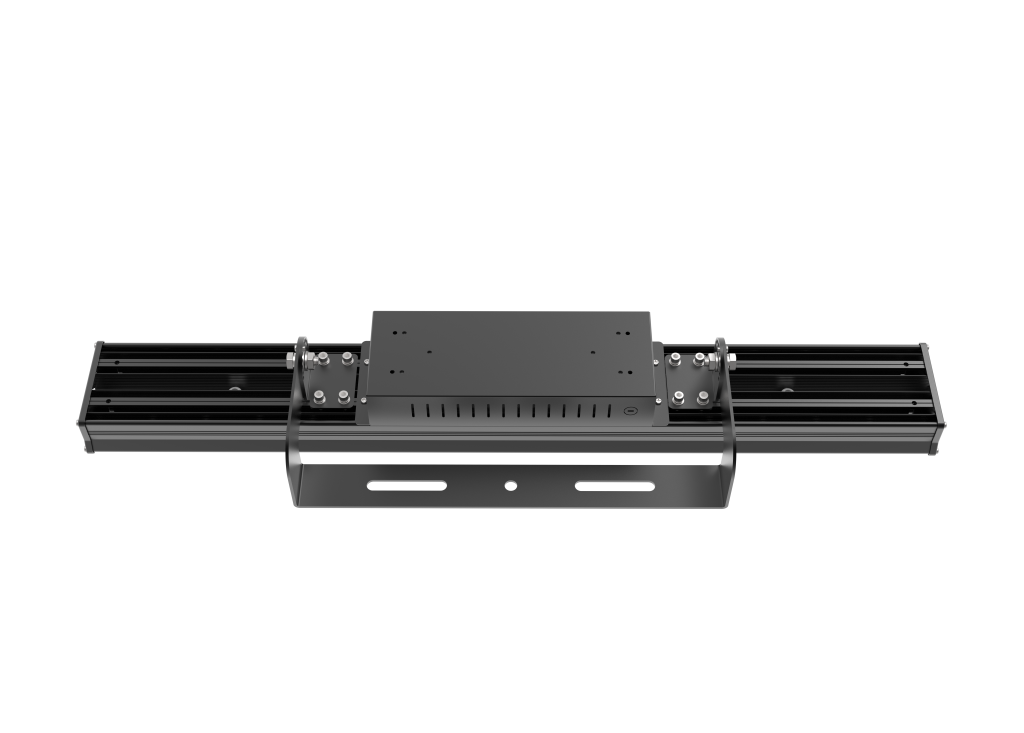

L16 Marry 200W–400W Warehouse Lighting Linear High Bay

The VKS L16 Marry series is a professional-grade, high-power LED linear high-bay lighting system designed specifically for industrial facilities and large-scale warehouses. Featuring a robust aluminum housing and a durable powder-coated finish, this series is an ideal, high-performance alternative to traditional, energy-intensive HID systems. With power ratings ranging from 200W to 400W and an impressive system efficacy of 170–190 lm/W, these fixtures are capable of precisely illuminating high-ceilinged spaces and vertical racking systems. This modular design offers not only a sleek appearance but also exceptional functionality, making it ideal for applications with stringent requirements for light quality and energy management.

Beam Angle: Symmetric, Asymmetric
Power: 200W, 300W, 400W
Application: Indoor

Get a Quote

Are You Facing These Problems?

Warehouse operators typically face substantial electricity costs associated with 24/7 operations, and lighting blind spots in shelving areas can directly compromise operational safety. Furthermore, maintaining lighting fixtures in high-ceilinged spaces is extremely difficult; frequent replacement of burned-out bulbs not only requires expensive lifting equipment but also disrupts logistics workflows.



Key Advantages

Unparalleled Return on Energy Investment: With a system efficacy of up to 190 lm/W, the L16 delivers industry-leading brightness while minimizing power consumption.

Shelving-Specific Light Distribution: Multiple beam angles ensure light is precisely directed into narrow aisles rather than wasted on the tops of shelves.


Ten-Year Maintenance-Free Reliability: With a lifespan exceeding 100,000 hours and a 5-year warranty, maintenance cycles are significantly reduced, leading to substantial long-term labor cost savings.

Smart Dimming Management: Built-in support for 1-10V and DALI smart control systems allows integration with sensors to achieve precise energy savings through “lights on when people arrive, lights dim when people leave.”



Specifications by Models

Model NO. VKS-FL200-L16 VKS-FL300-L16 VKS-FL400-L16
Power 200W 300W 400W
Input Voltage 200-240VAC, 50-60Hz
LED SMD2835
Driver Inventronics/Meanwell/Sosen
CCT 3000K/4000K/5700K
CRI >70 (>80,>90 Optional)
SDCM <5
Power Factor 0.95
Efficacy 170-190lm/W
IP Ratng IP66
IK Ratng IK10
Control On-off / 1-10V / DALI
Surge Protection 10KV (20KV Optional)
Beam Angle 30°/60°/90°/30°×70°/60°×90°/40°×130°/70°×140°
Warranty 5 Years
Housing Color Black
Material Aluminum,PC lens
Finish Powder Coating
Operating Temperature -30 to +50℃
Life Span >100,000Hrs @L70
Net Weight (without driver)(kg) 5.2 6.5 8
