LED Sports Lighting

Pulse Series Linear High Bay UGR<19 Anti-Glare Solution for Indoor Sports Courts

Pulse is a linear LED high bay engineered for indoor racket sports. UGR < 19 optics eliminate player glare, while 160-180 lm/W efficacy cuts energy costs by 35% vs standard high bays. Available in 60W-120W and 120W-240W with selectable 60°/90°/120° beams for courts at 4m-12m height. IP66 / IK08 rating withstands humidity and ball impacts. CE / RoHS / SAA certified.

Beam Angle: Symmetric
Power: 120W, 60W, 240W
Application: Indoor

Get a Quote

Product Details
Specifications
FAQs

Product Details

Benefits:

UGR < 19 — eliminates glare for 2+ hour tournament play
160-180 lm/W — 35% lower energy cost vs standard high bays
3 beam angles (60°/90°/120°) — one SKU fits singles courts to multi-court halls
IP66 / IK08 — 5-year zero maintenance in humid, high-impact environments
-30°C to +45°C — no flicker or color shift across climate zones
Modular 2-panel — half replacement cost; asymmetric court compatible

Why Choose Pulse indoor sports light

Player-first optics — UGR<19 meets EN 12464-1; players look up without squinting
Court-matched beams — 0.7+ uniformity ratio; no hot spots or dark corners
Tournament-grade thermal — dual heat sinks keep LEDs below 75°C for 12-hour play
Flexible mounting — chain (8-12m) or bracket (4-6m); 75mm slim profile
Verified safe — CE/RoHS/SAA; IP66 sealing prevents electrical hazards in humid halls

Specifications

Model No.	VKS-FL0060-Pulse	VKS-FL0120-Pulse
Power	60W-120W	120W-240W
Voltage	AC 100-277V
Efficacy	160-180 lm/W
LED Brand	Lumileds
LED	SMD2835
Beam Angle	60° / 90° / 120°
UGR	< 19
CCT	4000K / 5000K / 5700K
CRI	Ra > 80 (Ra > 90 opt)
IP	IP66
IK	IK08
Temp	-30°C to +45°C
THD	<15%
PF	>0.95
Lifespan	50,000+ hrs@L70
Housing	Die-cast aluminum, RAL 9017
Lens	UV-stabilized polycarbonate

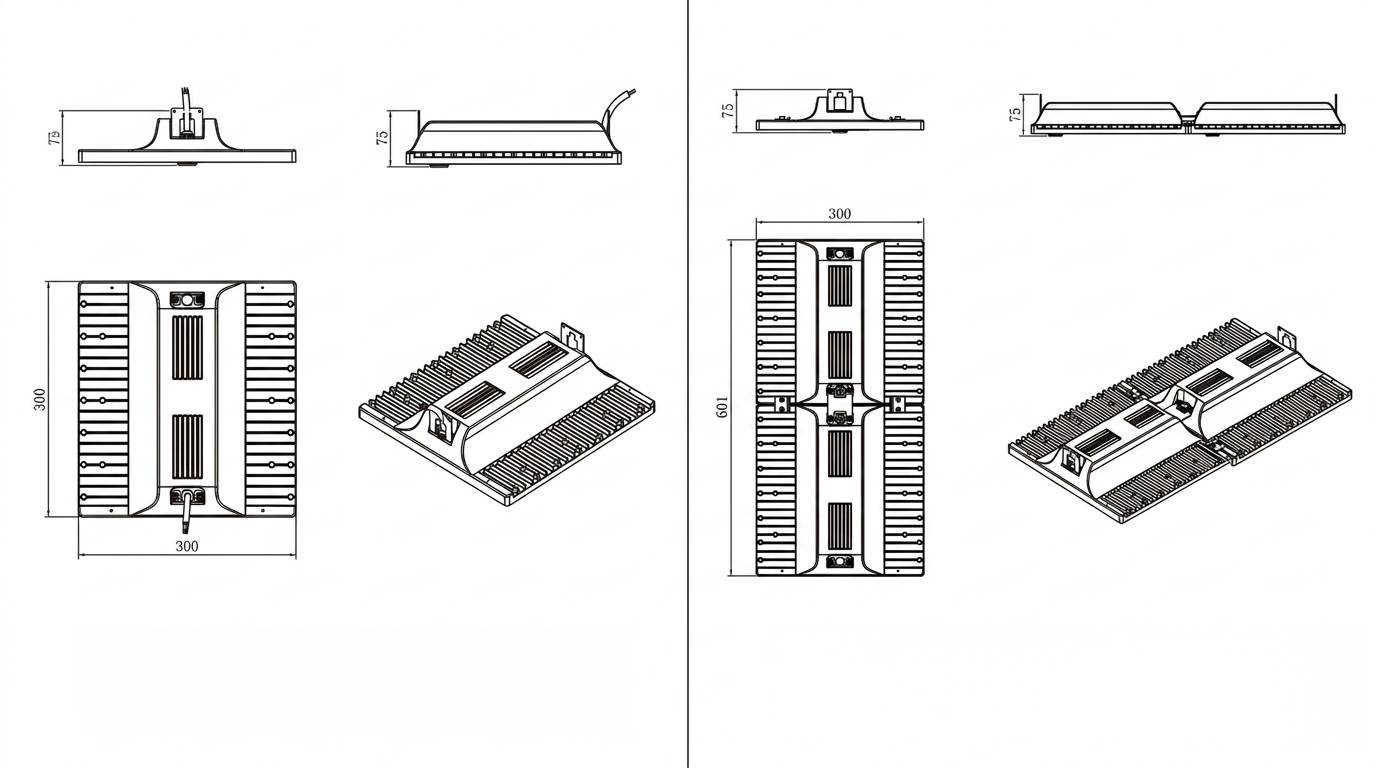

dimension

FAQs

Q1: What does UGR<19 mean for players?

UGR below 19 means zero glare discomfort when looking at ceiling lights — critical for tracking shuttlecocks and pickleballs during fast play.

Q2: How do I determine the right number of fixtures for my court?

Court dimensions, mounting height, target lux level, and uniformity requirements all affect fixture count. We provide free DIALux lighting simulations to optimize your layout before purchase.

Q3: Will humidity damage the fixture?

IP66 sealing + breathable vents handle 90% RH. Polycarbonate lens resists fogging.

Q4: Which beam angles are available?

60°, 90°, and 120° optics are included per fixture. We run simulations to recommend the optimal angle for your specific court layout and mounting height.

Q5: Warranty and lead time?

5-year warranty. Samples: 3-7 work days. Bulk : 15-20 work days.
