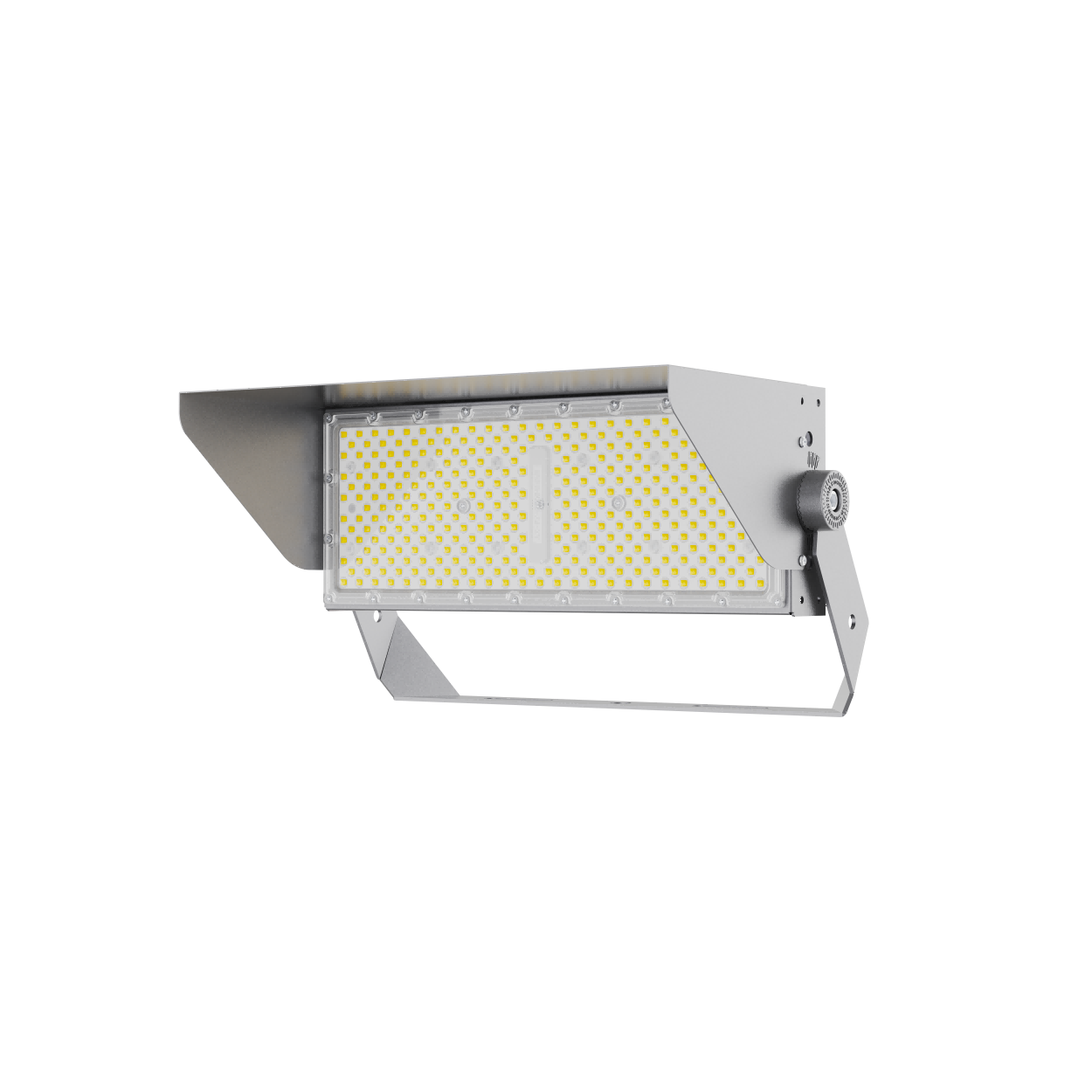

L08S 200W–1000W High Performance LED Flood Light with Fin Heat Sink

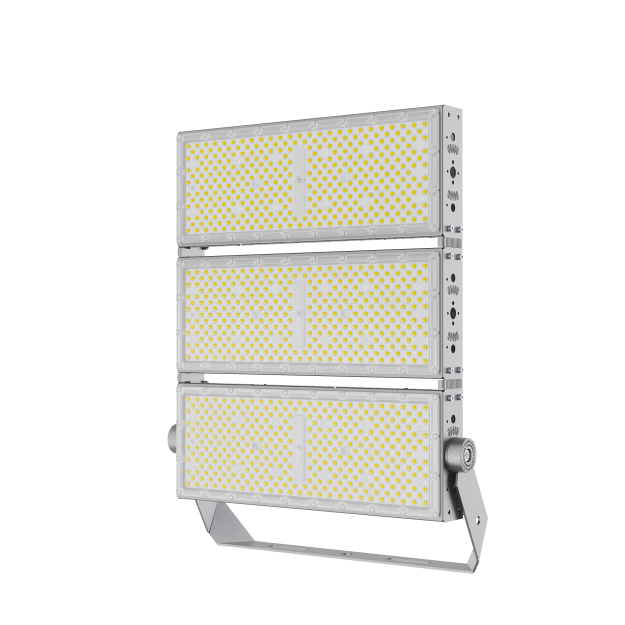

The VKS L08S High Performance LED Flood Light is engineered for demanding outdoor lighting applications requiring high output, reliable thermal performance and flexible installation. Built on a 200W modular platform, it supports configurations from 200W to 1000W using up to five modules. Compared with the standard L08, the L08S adopts a lightweight fin heat sink that improves heat dissipation while reducing fixture weight. Combined with precision optics, UV-resistant PC lenses and an overall rotatable design, it provides dependable illumination for industrial facilities, ports, airports, stadiums and other large outdoor environments.

Beam Angle: Symmetric, Asymmetric
Power: 200W, 400W, 600W, 800W, 1000W
Application: Outdoor

Get a Quote

Product Details
Specifications
FAQs

Product Details

Benefits

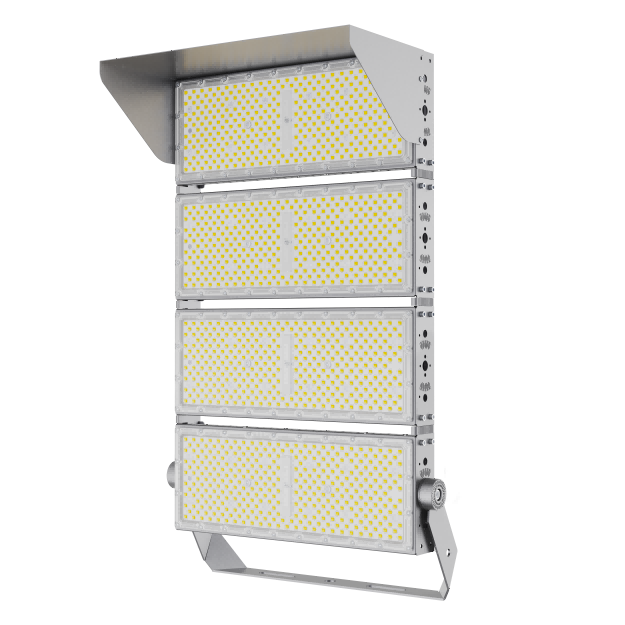

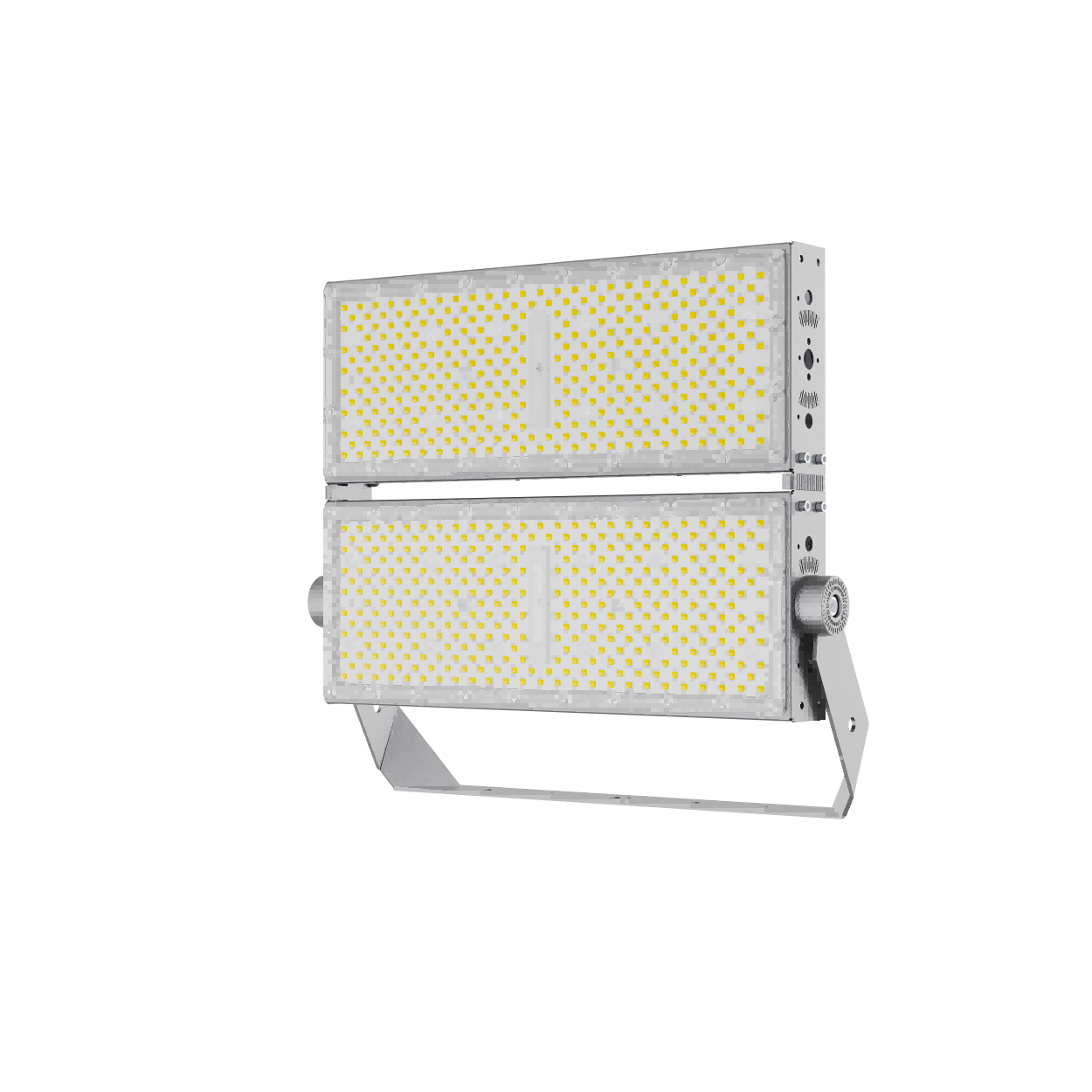

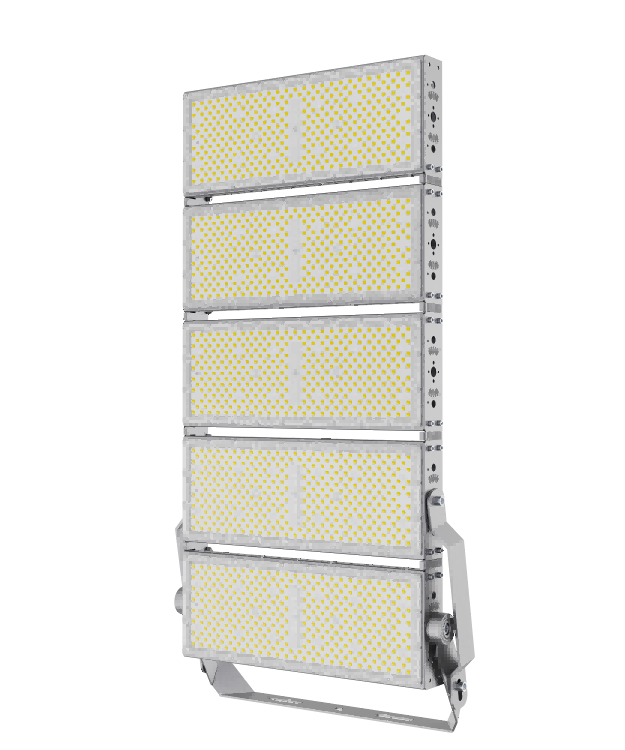

Configure lighting output from 200W to 1000W with a flexible 200W modular platform.
Deliver 160–170 lm/W high luminous efficacy to reduce energy consumption and operating costs.

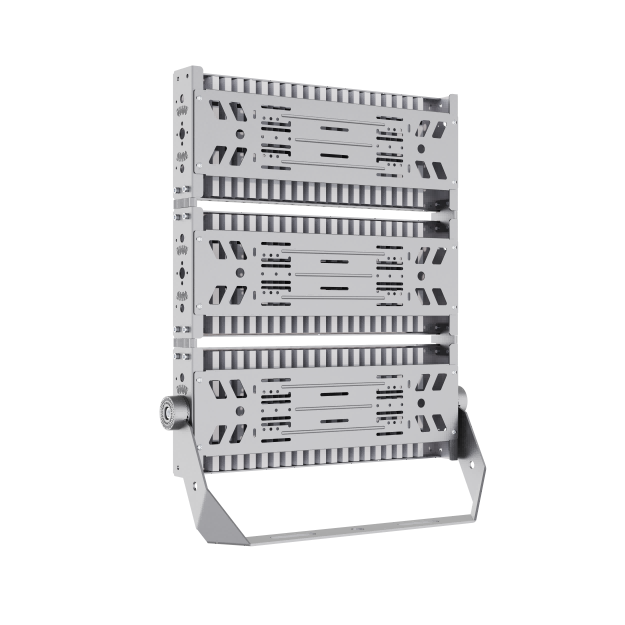

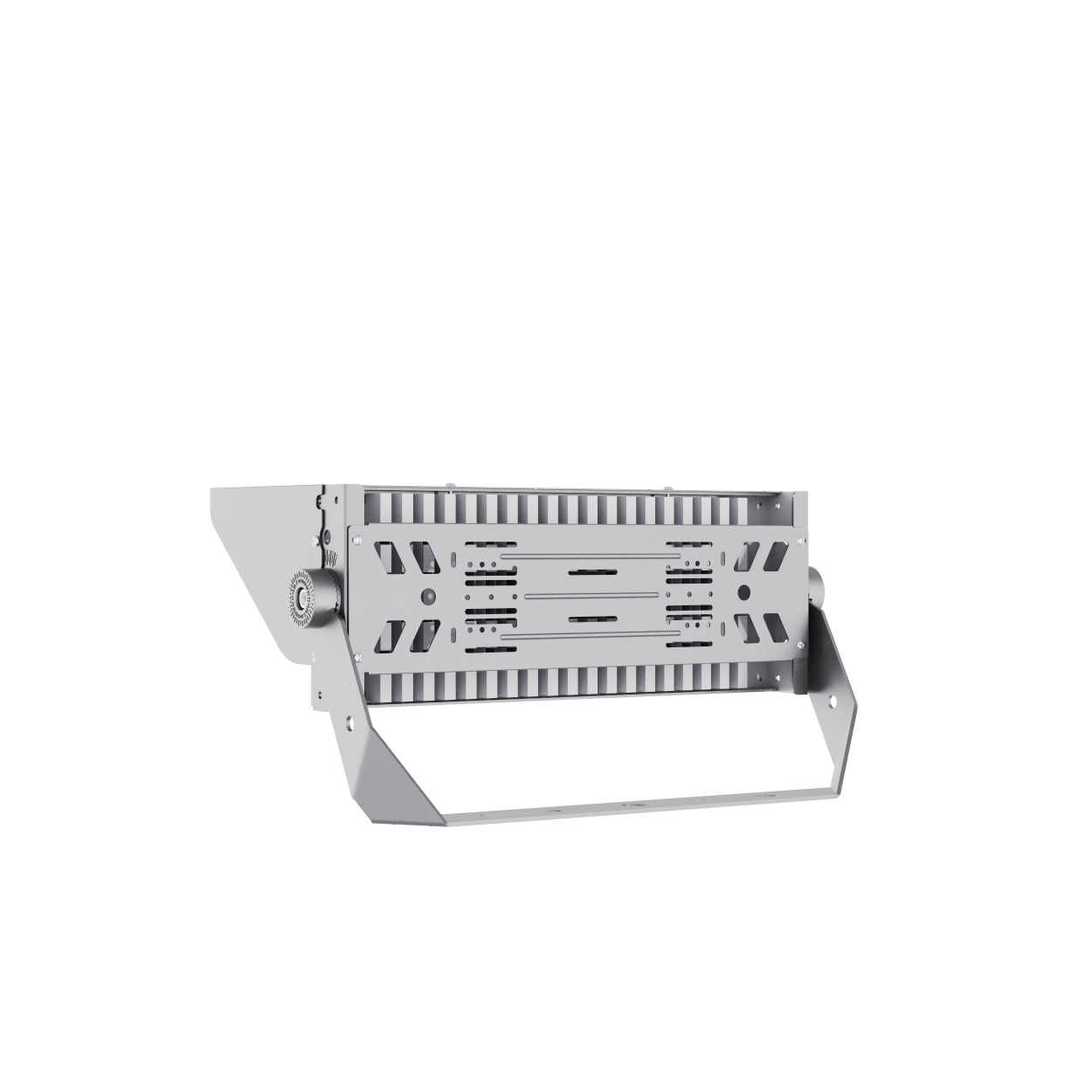

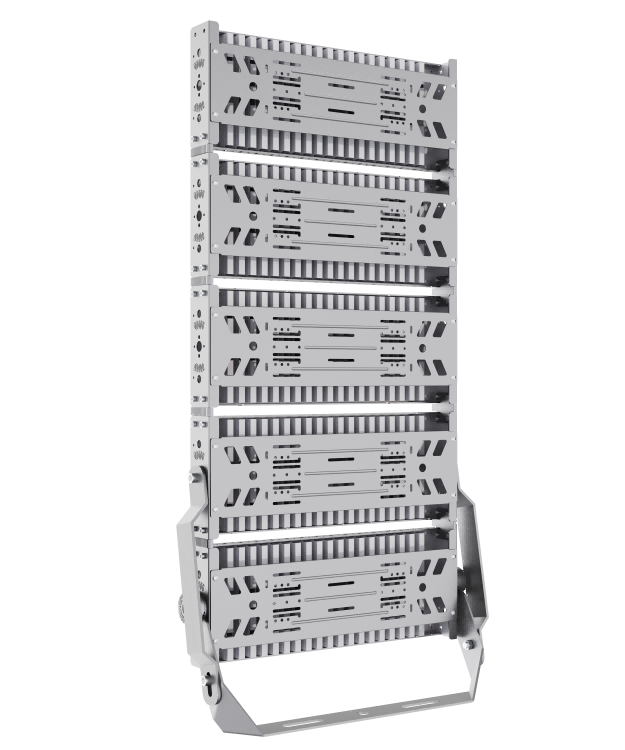

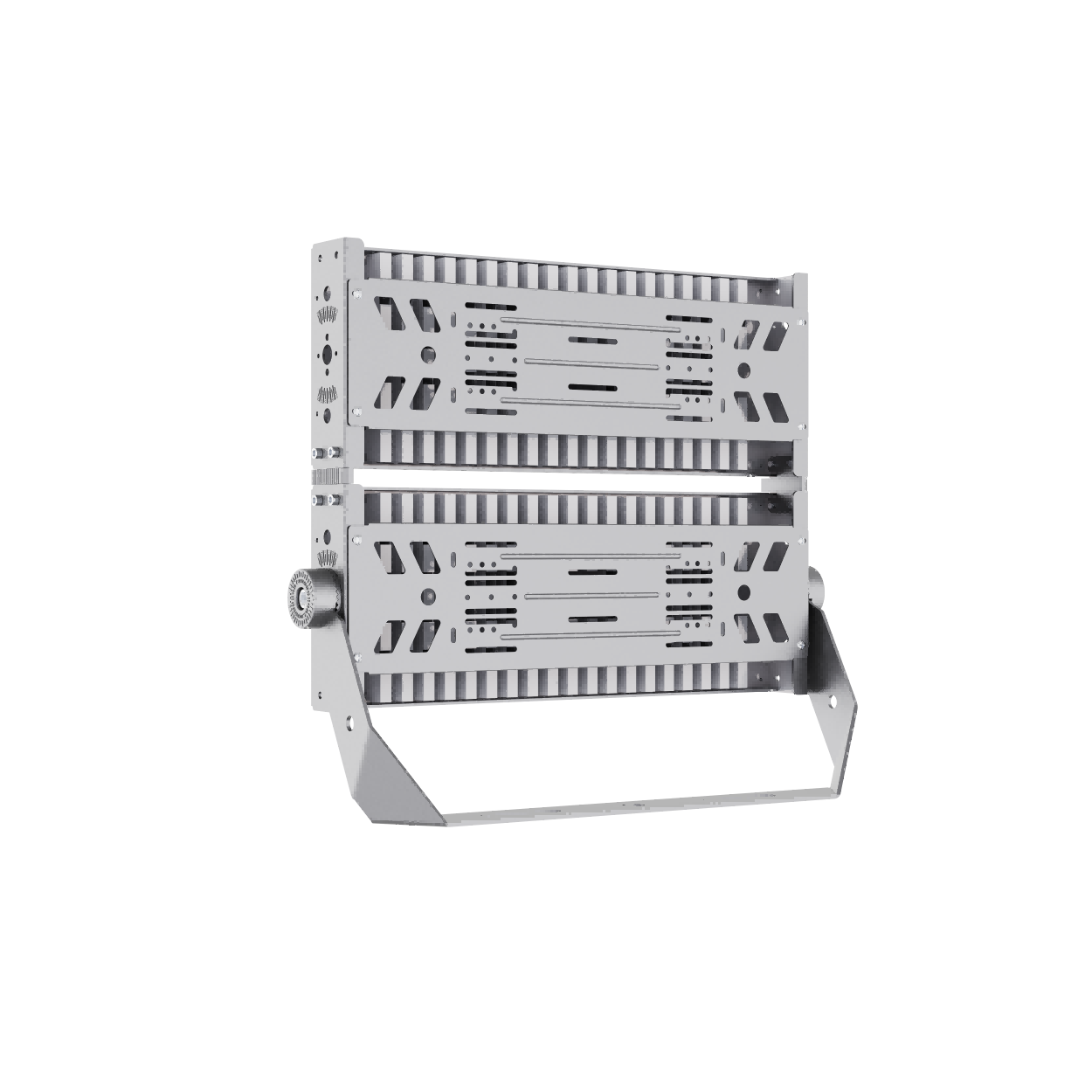

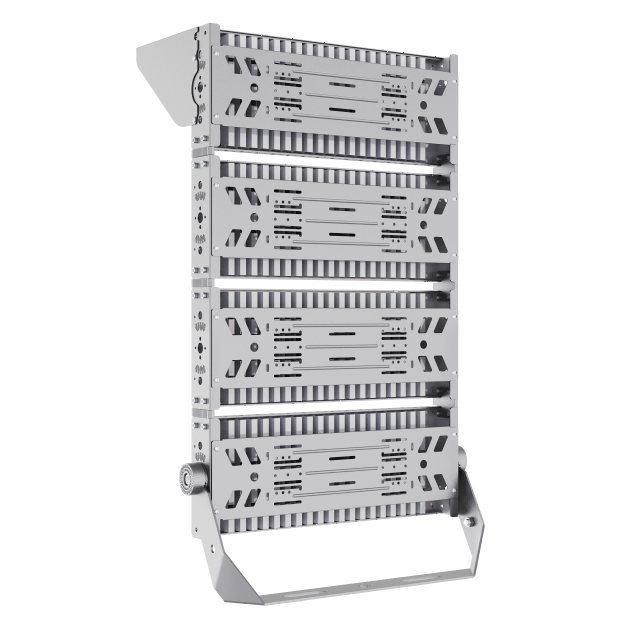

Lightweight fin heat sink improves thermal performance while reducing fixture weight and installation load.
Overall fixture rotation allows fast and accurate beam aiming for different installation positions.
Precision optical system provides uniform illumination while minimizing light spill.
Die-cast aluminum construction and IP66 protection ensure reliable operation in harsh outdoor environments.

Why Choose VKS L08S

200W modular platform supports flexible power configurations up to 1000W.
Lightweight fin heat sink enhances cooling efficiency while reducing overall fixture weight.
Overall rotatable design simplifies fixture aiming during installation.
UV-resistant PC lenses ensure long-term optical stability.
Precision optics deliver excellent lighting uniformity for large outdoor areas.
Multiple mounting options adapt to various industrial and commercial lighting projects.

Specifications

Model NO.	VKS-FL0200-L08S	VKS-FL0400-L08S	VKS-FL0600-L08S	VKS-FL0800-L08S	VKS-FL1000-L08S
Power	200W	400W	600W	800W	1000W
Input Voltage	200-240VAC, 50-60Hz
LED Brand	Lumileds
LED Type	SMD 3030
Driver	Inventronicsl/Sosen/Moso
CCT	3000K/4000K/5000K/5700K
CRI	>70 (>80,>90 Optional)
SDCM	<5
Power Factor	0.95
Efficacy	160-170lm/W
IP Ratng	IP66
IK Ratng	IK08
Control	On-off / 1-10V / DALI/ DMX512
Surge Protection	10KV (20KV Optional)
Beam Angle	30°/40°/60°/90°
Warranty	5 Years
Housing Color	Black/Grey
Material	Fin Heat sink, Aluminum, PC lens
Operating Temperature	-30 to +50℃
Life Span	>100,000Hrs @L70

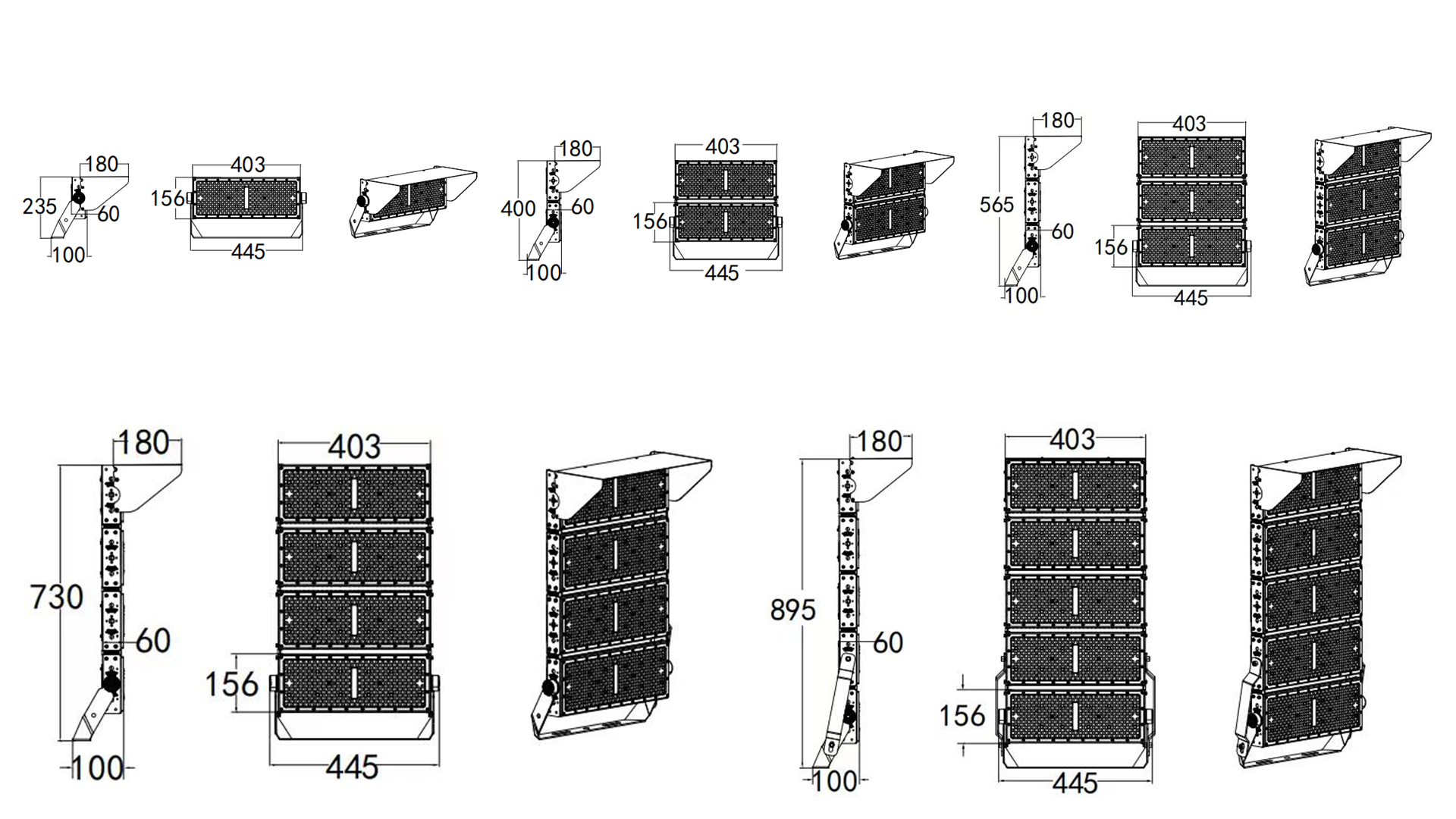

size of L08S

FAQs

What is the power range of the L08S?

The L08S is built on a 200W modular platform and is available in configurations from 200W to 1000W using up to five modules.

Which color temperatures are available?

The L08S is available in 3000K, 4000K, 5000K and 5700K, making it suitable for a wide range of outdoor lighting applications.

Is the L08S suitable for large-area lighting?

Yes. Its high-output modular platform, precision optics and multiple beam distributions make it ideal for industrial facilities, ports, airports, stadiums and other large outdoor spaces.

Can the L08S be customized for higher power?

Yes. While the standard configuration supports 200W–1000W, higher-output customized solutions can be discussed for specific project requirements.

How many years of warranty do you offer?

We offer 5 years of warranty.
